fieldSENSE 2.0 Datenblatt

DATENBLATT

fieldSENSE 2.0
Frequency range of operation
50 MHz – 6 GHz
Frequency response
Shaped (Occupational/Controlled)*
− ICNIRP (2020)
− FCC [NCRP] OET65 (1997)
− Canada Safety Code 6 (2015)
Sensor polarisation
Isotropic
Isotropy
± 3 dB
Probes
E-field & H-field ( 3 orthogonal probes each)
Result type
Time-averaged RMS power density
Calibration interval
2 yearly
Level indicators
    7 LED's
Percentage of Exposure Reference level
2%, 5%, 10%, 25%, 50%, 100%, 200% or more
Audio Alarm Indicators
    50% (5th LED)
    100% (6th LED)
    200% (7th LED)

0.75 Hz beep
1.5 Hz beep
3 Hz beep
Operation
Single button operation
CW damage levels
26 dB above Standard | 40 000% of Standard
Data logging
E , H and Maximum & audio notes
PC connection
Micro USB connection, software available on website
Fail detection system
3-axis accelerometer
Battery life
6-12 months on average usage
Low battery warning
Flashing LED
Battery type
2 x 1.5 V size AAA (LR03) alkaline
Mounting options

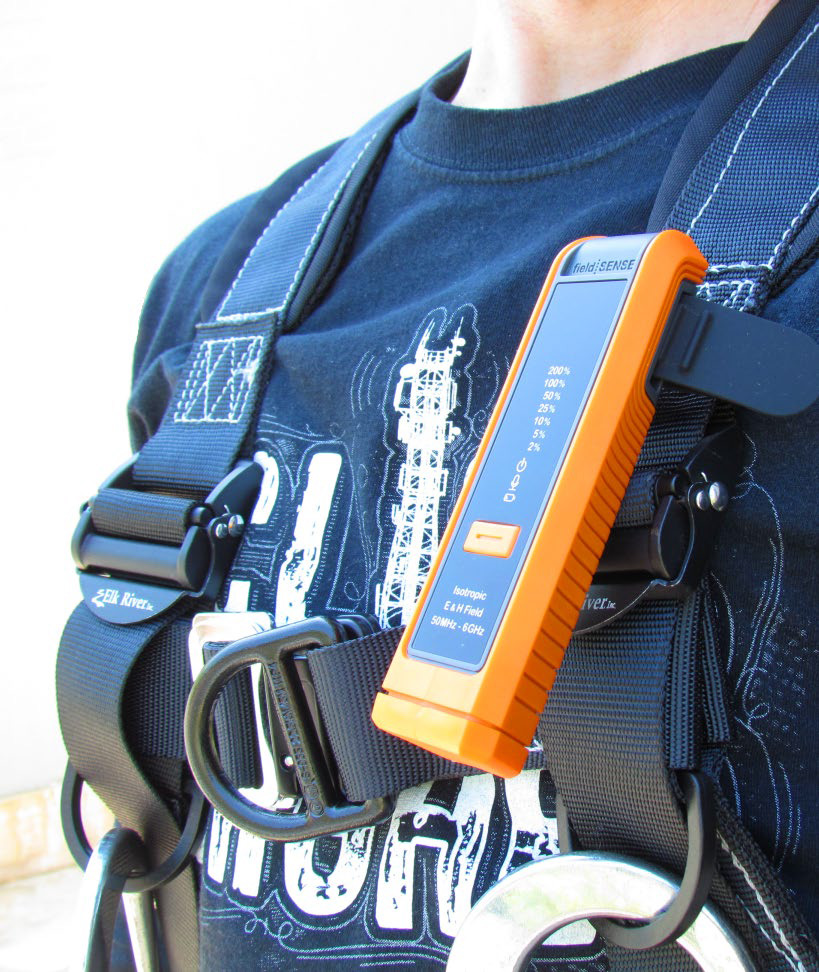

Handheld (with wrist strap on lanyard)
Harness (with supplied harness strap)
Tripod socket (remote monitoring)
Included
Rugged reusable zipper case
Wrist strap (adjustable)
Harness strap (adjustable)
User manual & calibration certificate
2x AAA batteries & 2x spare AAA batteries
Dimensions
146 x 26 x 42 mm | 5.7 x 1 x 1.7 inches
Weight (incl. batteries)
115 g | 0.25 lb
Temperature
Operating: -20 °C – 50 °C
Additional environmental testing
Impact (IK08), Ingress (IP64), Vibration, Drop, Humidity
Certification
CE, UKCA

* Minor differences in exposure standards introduce small variations in measurement uncertainty at specific frequencies. Specific details
can be supplied and are listed in the user manual.
